Of course. This is an excellent question, but the answer is complex because the price of a UV laser marking machine varies dramatically based on its specifications and intended use.
There is no single price; instead, they fall into a wide range. A small, basic system can start around $8,000 to $15,000 USD, while high-end, automated industrial systems can easily cost $50,000 to over $100,000 USD.
Here’s a detailed breakdown of what influences the cost and what you can expect.
Key Factors Determining the Cost
Laser Power (The Biggest Factor):
3W - 5W: The most common range for benchtop machines. Ideal for fine marking on plastics, glass, and sensitive materials. (Price typically lower).
10W - 15W: Offers higher speed and can mark on a wider variety of materials, including some metals. This is a common sweet spot for industrial use.
20W and above: Used for high-speed production lines and challenging materials. Significantly increases the cost.
Machine Type & Configuration:

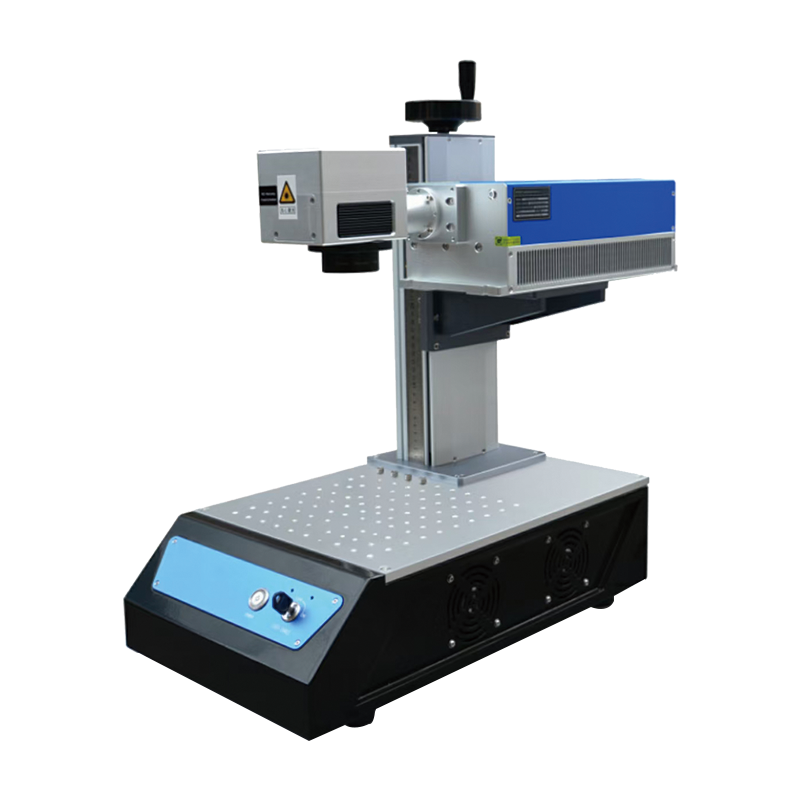

Benchtop / Desktop Models: Compact, manual (or semi-automatic), perfect for R&D, small batches, and job shops. ($8,000 - $25,000)
Integrated Galvo Systems: The "classic" industrial laser marker. The laser source is separate, and the beam is directed by high-speed mirrors. Best for marking small, flat items. ($15,000 - $40,000)
Flying Optics Systems (3D): Use a galvo head on a moving Z-axis to mark on curved or uneven surfaces. More expensive. ($25,000 - $60,000+)
Fully Automated Production Line Systems: Include conveyors, robotic arms, autofocus, vision systems for alignment, and part sorting. These are custom solutions. ($50,000 - $150,000+)
Brand & Origin:
Western/Japanese Brands (e.g., Trumpf, Coherent, Keyence, Panasonic): Premium price. Superior reliability, excellent after-sales service, and strong technical support. Often 2-3x the cost of a Chinese equivalent.
Chinese Brands (e.g., HSG Laser, Raycus, Maxphotonics): Offer excellent value. The technology is very mature. Quality can vary between manufacturers, so due diligence is needed. They dominate the mid-range market.
DIY / "Grey Market" Kits: Available online (e.g., AliExpress) for as low as $4,000 - $7,000. These are for experts only, as they require self-assembly, configuration, and come with little to no support or warranty safety.
Additional Features & Components:
Vision System (CCD Camera): For automatic alignment and reading barcodes before marking. Adds $5,000 - $15,000+.
Rotary Attachment: For marking on cylindrical objects (pens, bottles, vials). Adds $3,000 - $8,000.
Chiller: Essential for high-power lasers to maintain a stable temperature. Air-cooled is cheaper; water-cooled is more effective for powerful lasers. Adds $1,000 - $5,000.
Exhaust System / Fume Extractor: For removing harmful particulates. Adds $500 - $3,000.
Software: Advanced software with database connectivity (e.g., connecting to Excel, ERP systems) will cost more than basic marking software.
Estimated Price Ranges Summary
| Machine Type | Laser Power | Typical Price Range (USD) | Best For |
|---|---|---|---|
| Entry-Level Benchtop | 3W - 5W | $8,000 - $15,000 | R&D, prototypes, small businesses, marking small items. |
| Standard Industrial Galvo | 5W - 10W | $15,000 - $30,000 | Most common industrial applications (electronics, medical parts). |
| High-Power/Advanced Galvo | 10W - 15W+ | $30,000 - $50,000 | High-speed production, tougher materials, more versatility. |
| Fully Automated Line | 10W - 30W | $50,000 - $150,000+ | Large-scale manufacturing with integration into full automation. |
Beyond the Machine: Total Cost of Ownership (TCO)
Remember to factor in these ongoing costs:
Consumables: UV laser tubes (the source) have a finite lifespan, typically 10,000 to 30,000 hours. Replacing one can cost $2,000 - $8,000+.
Electricity: The laser and chiller consume significant power.
Maintenance: Regular lens cleaning, mirror alignment, and chiller service.
Gas: Some high-end UV lasers require periodic purging with special gases.
How to Get an Accurate Quote
Define Your Application: Exactly what material are you marking? What mark quality (contrast, depth) do you need? What is your required marking speed (parts per hour)?
Contact Multiple Suppliers: Provide them with samples of your parts and your requirements. Reputable companies will often test mark your sample for free.
Ask What's Included: Does the price include installation, training, warranty (standard is 1 year), and initial spare parts (lenses)?
Consider Support: A cheaper machine is useless if it breaks down and you can't get technical support or spare parts.
In summary: While you can find a basic UV laser marker for under $15,000, a well-equipped industrial machine suitable for consistent production will most likely be in the $20,000 to $40,000 range. The final price is entirely dependent on your specific needs.
