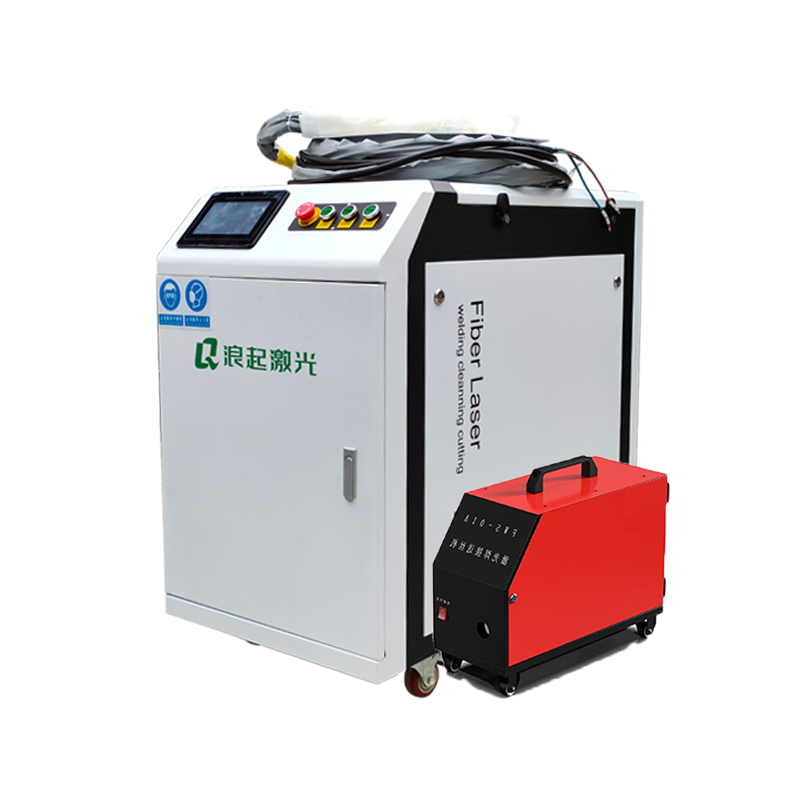

3000W hand-held laser welding machine, suitable for thick plate welding, with wire feeder or double wire feeding can weld metal plates with thickness of 0.8-9mm
Compared with 1000W handheld laser welding machine, the thickness of welding material is increased, and the laser penetration depth will be deepened. This power laser welding machine is widely used, mostly for sheet welding.
Main components of hand-held laser welding machine:
number
Project
Brand
Description
1
Lasers
MAX/BWT/Raycus
Top laser manufacturing factory in China
2
Control system
Relfar
Industry front-line control system brand
3
Hand-held rust removal head
Relfar
The all-aluminum model of the fuselage is compact and lightweight.
4
Water cooler
S&A Chiller
Preferred Refrigeration Brand in Laser Industry
5
Cabinet
Goldlaser
One of the appearance patents of Goldlaser
6
Electrical accessories
GHJT
Mainstream quality is adopted in electrical accessories.
Welding video
Comparison table of welding thickness of hand-held laser welding machine
Power
Stainless steel
Carbon steel
Aluminium
1000W
3mm
5mm
2mm
1500W
5mm
7mm
3mm
2000W
8mm
10mm
4mm
3000W
12mm
12mm
6mm
Effect photo of hand-held laser welding machine
Main parameters
number
Project
Parameters
Description
1
Laser power
1000W
Common power: 1000-1500-2000-3000
2
Laser wavelength
1064nm
The laser has a continuous laser wavelength of 1064.
3
Fiber optic cable length
10/15m
Length of cable from cabinet to gun head
4
Laser welding speed
3-12mm/s
Wire feeder can be added
5
Protective gas
Nitrogen / argon
Welding needs to be protected by inert gas
6
Protective lens
20*2
Clean air source protection lenses have a longer life.
