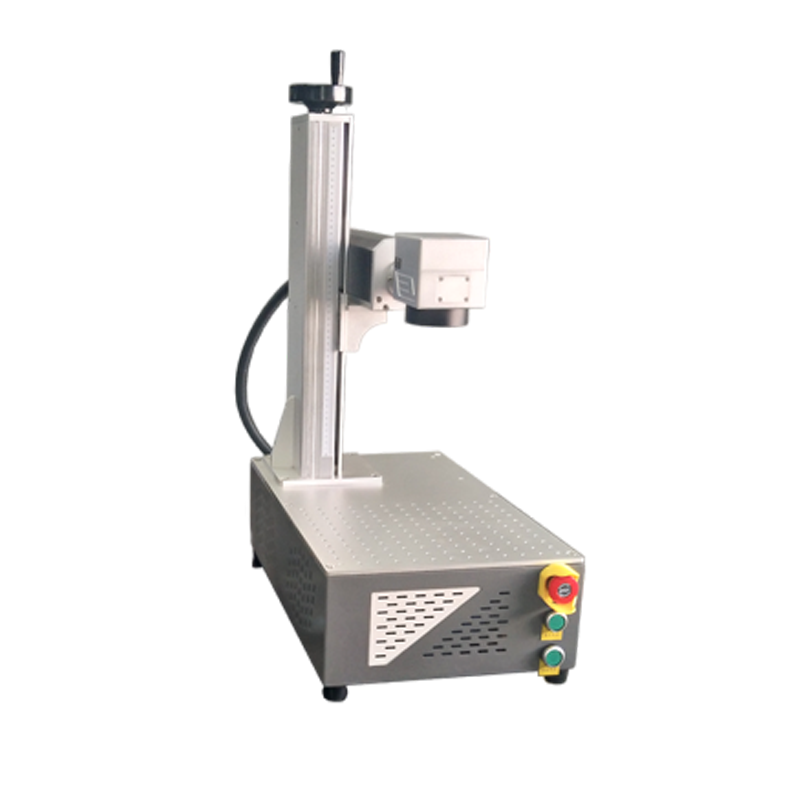

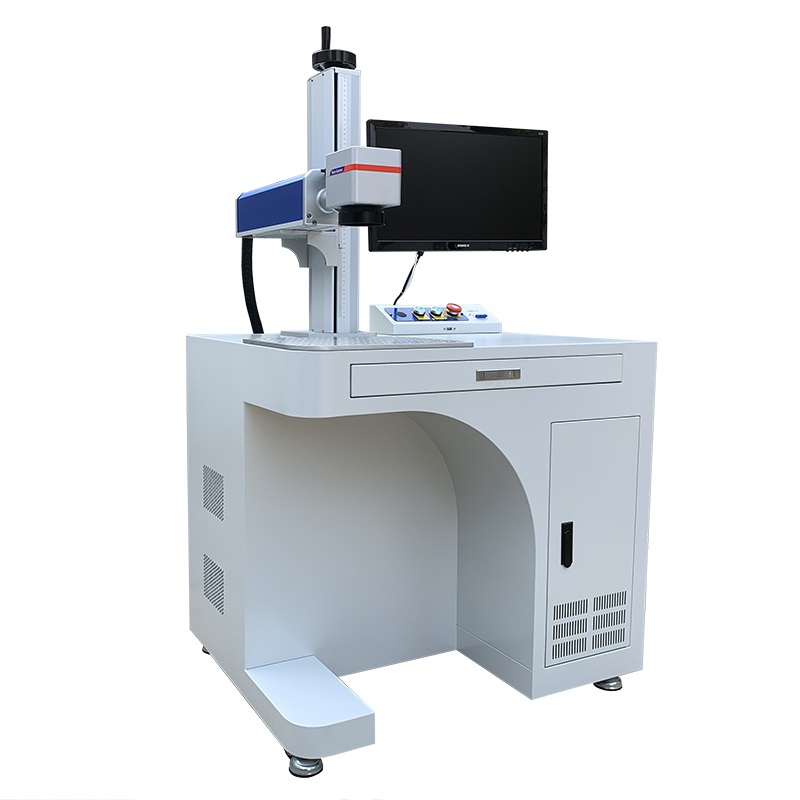

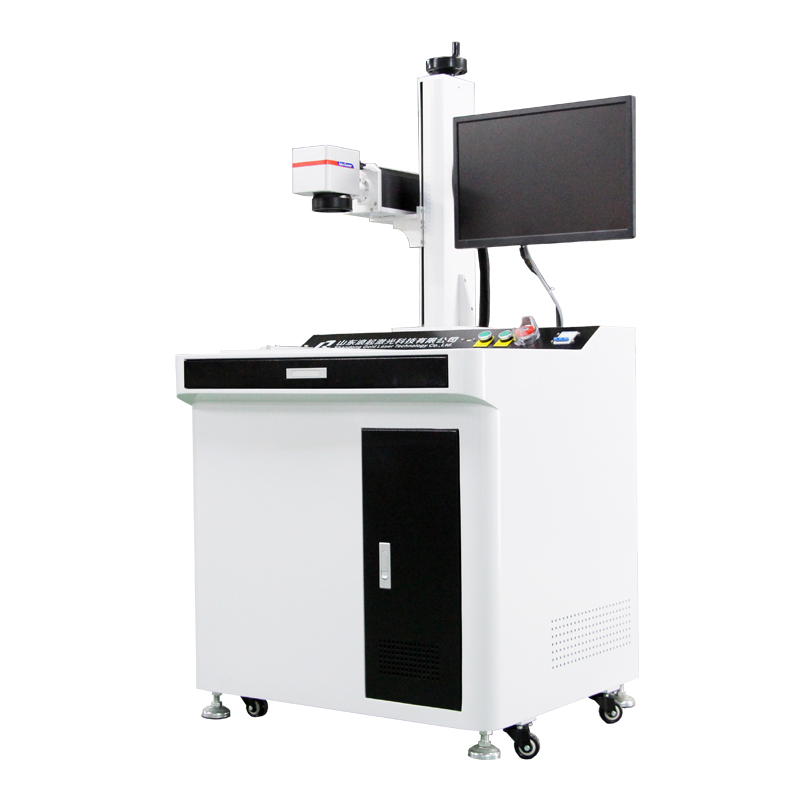

Working Size of Fiber Laser Marking Machine in Application

​The working size (marking area) of a fiber laser marking machine depends on the lens configuration and the application requirements. Here’s a breakdown of common working sizes and their typical uses:

  • laser power20W/30W/50W/100W
  • Mark area60mm-150mm
  • Markspeed3000mm/s
  • Mark depth0.05mm-1.0mm

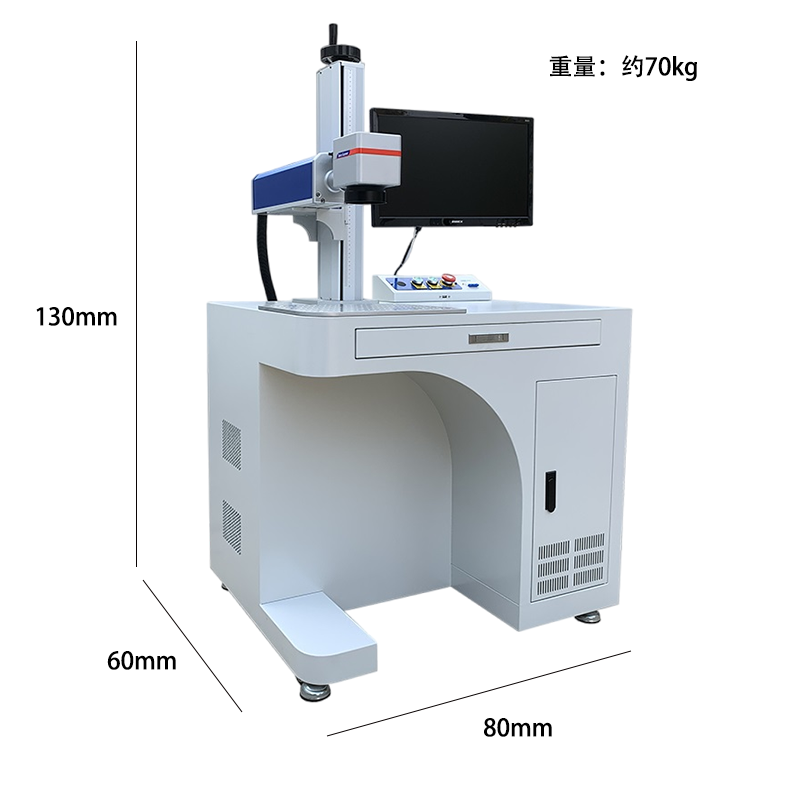

  • size600mm*800mm*1300mm
  • weight150.0 kg
price$$1409.0/Set - $3521.0/Set. More Earlier you buy, more discount you have.

The working size (marking area) of a fiber laser marking machine depends on the lens configuration and the application requirements. Here’s a breakdown of common working sizes and their typical uses:

1. Standard Working Sizes

Lens Focal LengthMarking Area (Approx.)Common Applications
110mm (F-theta)100mm × 100mm (4" × 4")Small parts, electronics, jewelry, QR codes
160mm (F-theta)150mm × 150mm (6" × 6")Tools, medical devices, hardware, logos
210mm (F-theta)200mm × 200mm (8" × 8")Automotive parts, industrial labels, larger metal components
300mm+ (F-theta)300mm × 300mm (12" × 12") or moreLarge industrial parts, aerospace components, batch marking

2. Extended Working Sizes (Galvo Scanner + XY Motion System)

  • Dynamic Focus Lens → Can mark on curved or uneven surfaces.

  • Large-Format Machines → Some systems offer 500mm × 500mm (20" × 20") or even larger areas for sheet metal, pipes, and panels.

3. Key Factors Affecting Working Size

  • Lens Type: Shorter focal length = smaller area but finer details.

  • Laser Power: Higher power (20W, 30W, 50W, etc.) allows deeper engraving on metals but doesn’t directly affect marking size.

  • Software & Galvo Speed: High-speed galvo systems maintain precision even in large areas.

4. Applications by Working Size

  • Small (100×100mm): Precision marking (PCB, micro parts).

  • Medium (150×150mm): Tools, medical instruments, serial numbers.

  • Large (300×300mm+): Automotive VIN plates, industrial machinery, aerospace components.
