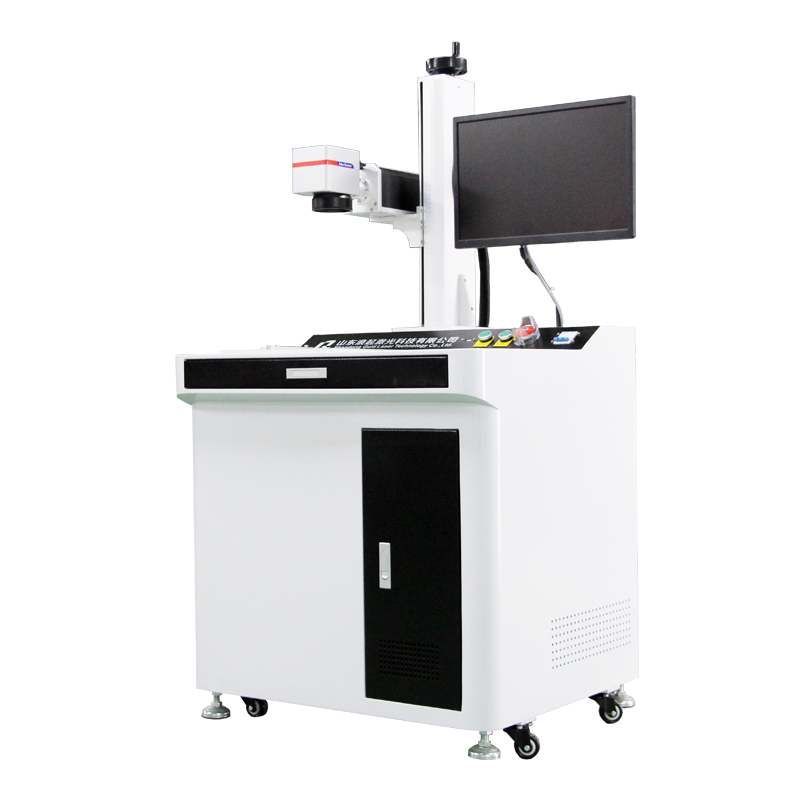

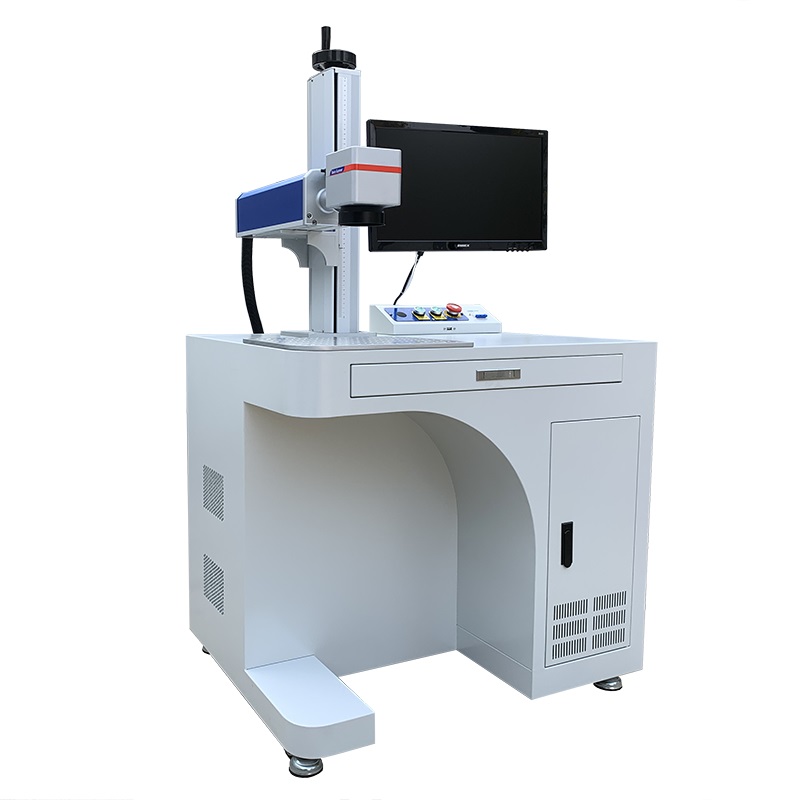

Fiber Laser Marking Machine with Visual Marking Function

A Fiber Laser Marking Machine with Visual Marking Function is an advanced industrial laser system that combines high-precision fiber laser technology with a vision system (typically a camera or CCD) for automated marking, engraving, or etching. This setup is ideal for applications requiring high accuracy, repeatability, and alignment with pre-existing patterns or product features.

  • laser power20W/30W/50W/100W
  • Mark area60mm-150mm
  • Markspeed3000mm/s
  • Mark depth0.05mm-1.0mm

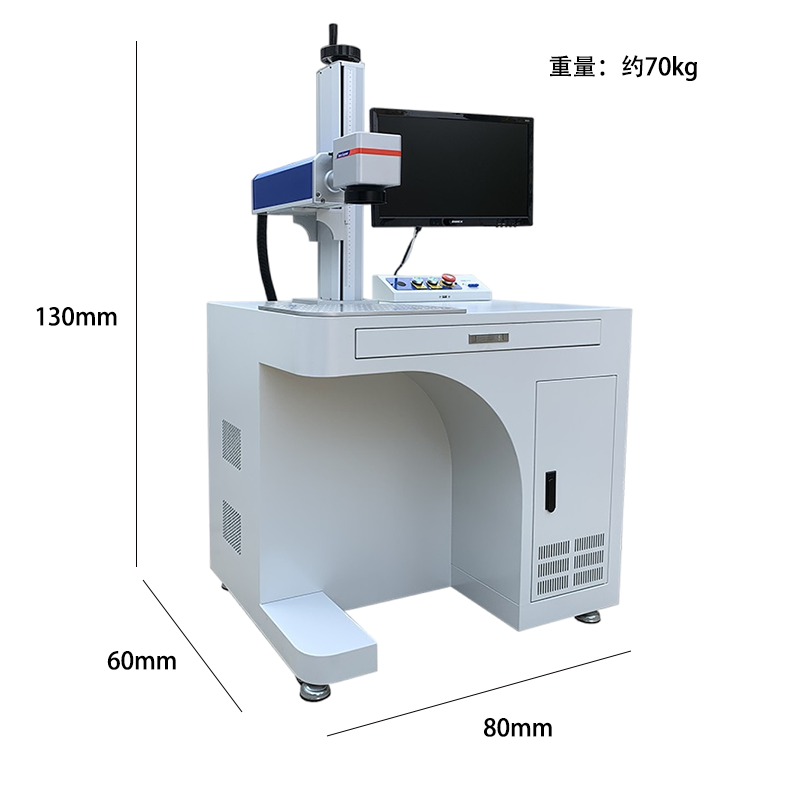

  • size600mm*800mm*1350mm
  • weight70.0 kg
price$1409.0/Set - 3521.0/Set. More Earlier you buy, more discount you have.

Fiber Laser Marking Machine with Visual Marking Function is an advanced industrial laser system that combines high-precision fiber laser technology with a vision system (typically a camera or CCD) for automated marking, engraving, or etching. This setup is ideal for applications requiring high accuracy, repeatability, and alignment with pre-existing patterns or product features.

Key Features:

  1. Fiber Laser Source

    • Typically uses a MOPA or Q-switched fiber laser (e.g., 20W, 30W, 50W, etc.).

    • Wavelength: 1064 nm (ideal for metals, plastics, and some ceramics).

    • High beam quality for fine, detailed markings.

  2. Visual Marking System (CCD Camera Vision)

    • Auto-alignment – The camera detects fiducial marks, barcodes, or product contours to ensure precise marking positioning.

    • Pattern recognition – Can locate and adjust marking based on pre-loaded templates.

    • Multi-layer marking – Allows marking on curved or irregular surfaces by compensating for position deviations.

  3. Software & Control

    • Compatible with EZCAD, LaserMark, or other vision-based laser software.

    • Supports DXF, PLT, BMP, AI, and other file formats.

    • Auto-focus & height adjustment for consistent marking depth.

  4. Applications

    • Automotive & Aerospace: Serial numbers, QR codes, logos.

    • Electronics: PCB marking, IC chips, connectors.

    • Medical Devices: Surgical tools, implants with traceability marks.

    • Jewelry & Precision Tools: Fine engraving with high detail.

Advantages of Visual Marking Function:

✔ High Precision (±0.02mm accuracy) – Perfect for small or complex parts.
✔ Increased Productivity – Reduces manual positioning time.
✔ Batch Processing – Can mark multiple parts with different designs automatically.
✔ Error Reduction – Eliminates misalignment issues.

Popular Models:

  • Raycus / IPG Fiber Laser + CCD Vision System

  • Han's Laser Visual Marking Systems

  • Trumpf TruMark with Vision

Would you like recommendations based on specific materials or industries?
