How CO2 Laser Marking Machine Smoke Discharged?

​CO₂ laser marking machines generate smoke and fumes during the engraving or marking process, especially when working on materials like wood, plastic, acrylic, or coated metals. Proper smoke discharge is essential to maintain a clean working environment, protect the laser optics, and ensure operator safety.

  • laser power20W/30W/50W/100W
  • Mark area60mm-150mm
  • Markspeed3000mm/s
  • Mark depth0.05mm-1.0mm

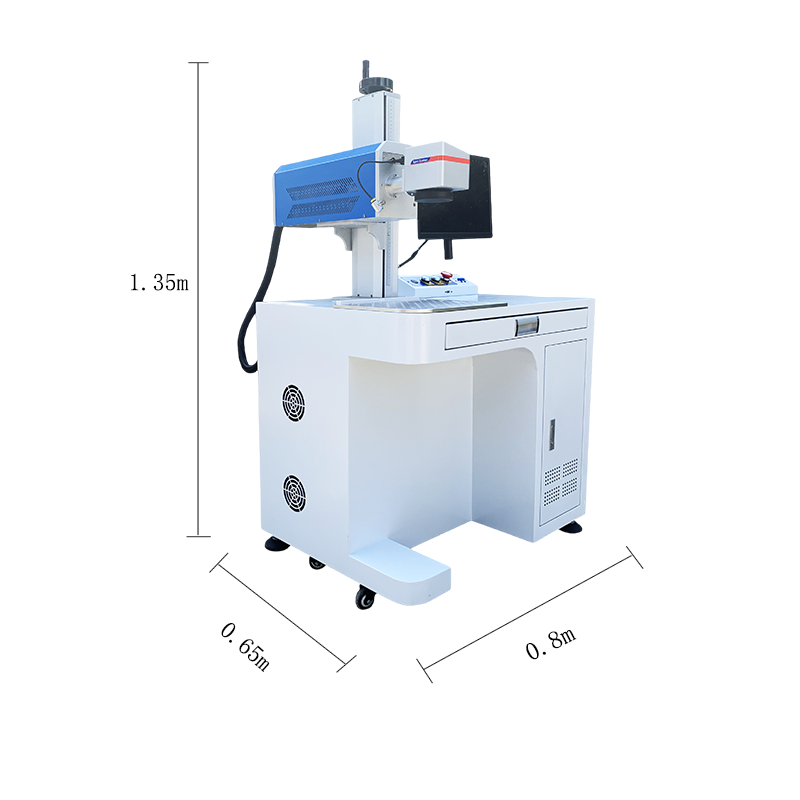

  • size600mm*800mm*1350mm
  • weight140.0 kg
price$$2113.0/Set - $3803.0/Set. More Earlier you buy, more discount you have.

CO₂ laser marking machines generate smoke and fumes during the engraving or marking process, especially when working on materials like wood, plastic, acrylic, or coated metals. Proper smoke discharge is essential to maintain a clean working environment, protect the laser optics, and ensure operator safety. Here’s how the smoke is typically discharged:

1. Built-in Exhaust System

  • Many CO₂ laser marking machines come with an integrated exhaust fan that extracts smoke and fumes directly from the laser engraving area.

  • The exhaust fan is connected to ventilation ducts that direct the smoke outside the workspace or into a filtration system.

2. External Smoke Extractors / Fume Extractors

  • For better air quality, an external fume extractor with activated carbon filters or HEPA filters can be used to purify the air before releasing it.

  • These systems capture harmful particles and odors, making them ideal for industrial environments.

3. Ventilation Ducts Leading Outside

  • In many setups, the smoke is simply vented outside through flexible or rigid ducts.

  • This is common in workshops where external air discharge is permissible.

4. Air Assist System (Optional)

  • Some CO₂ lasers have an air assist nozzle that blows compressed air near the laser beam, helping to reduce smoke buildup and keeping the lens clean.

  • While this doesn’t remove smoke entirely, it minimizes residue and improves marking quality.

5. Enclosed Laser Chambers with Extraction

  • High-end CO₂ laser systems have fully enclosed chambers with negative pressure systems, ensuring all smoke is efficiently extracted through an exhaust port.

Key Considerations for Smoke Discharge:

  • Local Regulations: Ensure compliance with environmental and workplace safety laws regarding fume emissions.

  • Filter Maintenance: If using a filtration system, replace filters regularly to maintain efficiency.

  • Ducting Material: Use heat-resistant and non-flammable ducts (e.g., aluminum or steel) for safety.
