3000W laser rust remover is more suitable for large area and mass derusting operation, compared with 1000-1500-2000 watt laser derusting machine, it uses 380V power supply, and the volume and weight of the whole machine are also higher than the first three, of course, the price is much higher, and the machine market application of this power is less.
Video of on-site operation of laser rust remover
The main components of laser rust remover:
| number | Project | Brand | Description |
| 1 | Lasers | MAX/BWT/Raycus | Top laser manufacturing factory in China |
| 2 | Control system | Relfar | Industry front-line control system brand |

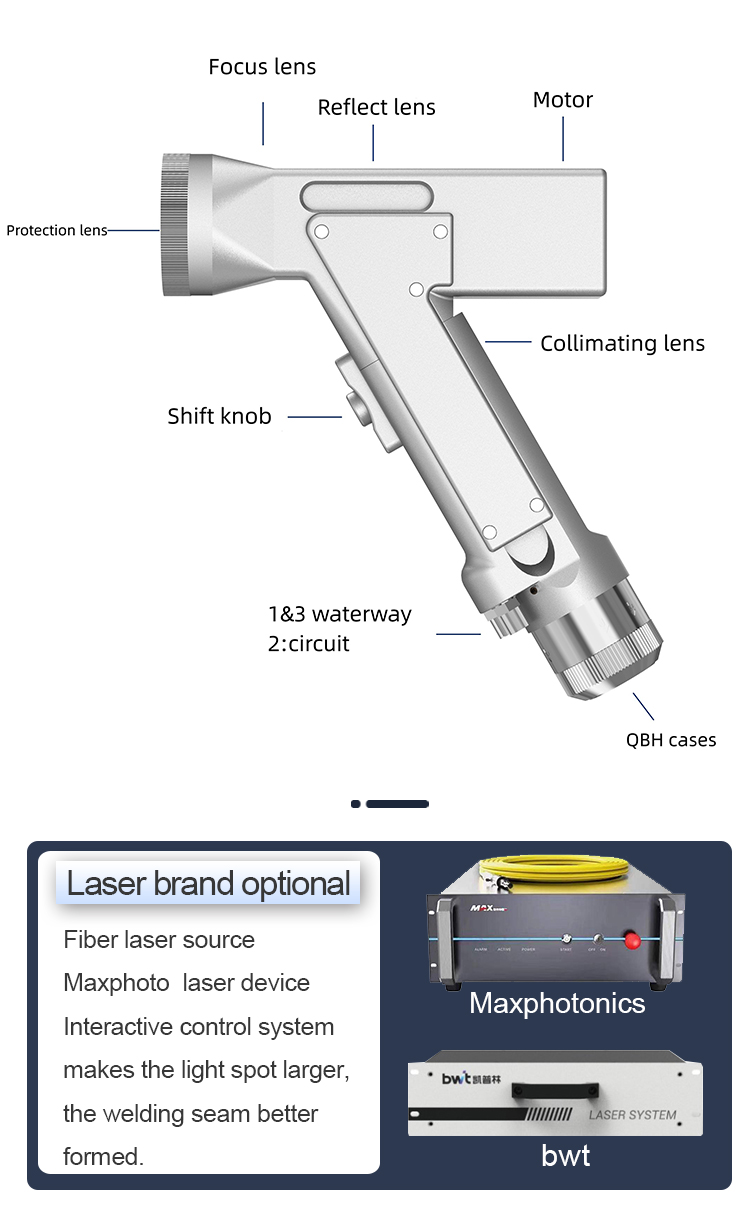

| 3 | Hand-held rust removal head | Relfar | Special executive parts for rust removal |
| 4 | Water cooler | S&A Chiller | Laser preferred Refrigeration Brand |
| 5 | Cabinet | Goldlaser | One of the appearance patents of Lang Qi |
| 6 | Electrical accessories | GHJT | Mainstream quality of electrical appliances |

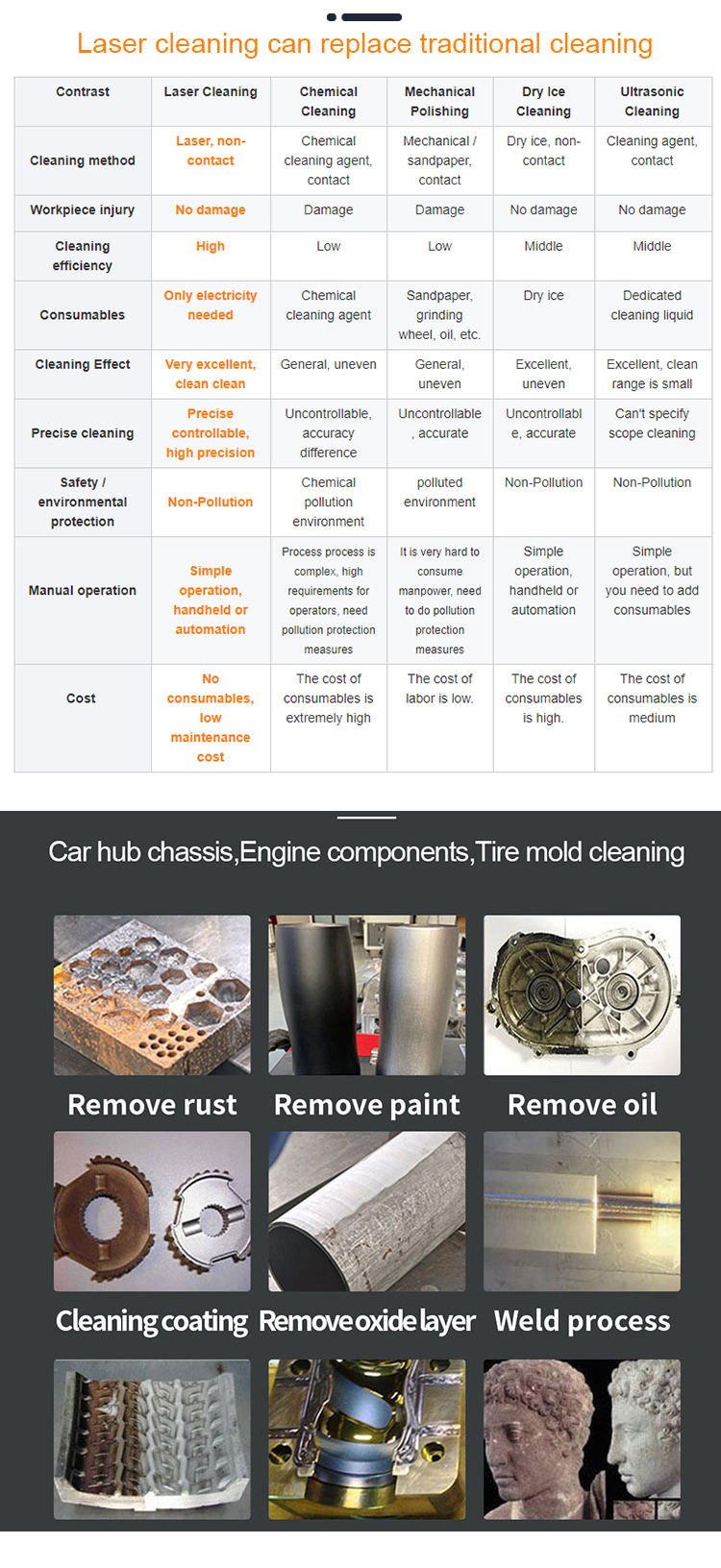

Effect photo of laser rust remover
Main parameters
| number | Project | Parameters | Description |
| 1 | Laser power | 1000W | Common power: 1000-1500-2000-3000 |
| 2 | Laser wavelength | 1064nm | The laser has a continuous laser wavelength of 1064. |
| 3 | Fiber optic cable length | 10/15m | Length of cable from cabinet to gun head |
| 4 | Rust removal efficiency | 1m²/min | 30-200mm internal tunable |
| 5 | Protective gas | Nitrogen / argon | Welding needs to be protected by inert gas |
| 6 | Protective lens | 30*2 | Clean air source protection lenses have a longer life. |
| 7 | Cooling mode | Water cooling | CW lasers are all water-cooled. |
| 7 | Working voltage | 200/380V | 3000W uses 380V voltage |
Portable Laser Rust Removal Machine Advantages
1. Non-contact cleaning, without damaging the base of the parts.
2. Precise cleaning, can achieve precise location, precise size selective cleaning.
3. No chemical cleaning fluid, no consumables, safety and environmental protection.
4. Simple operation with a special control panel, which is convenient to control.
5. It is portable and can be hand-held or cooperated with a manipulator to realize automatic cleaning.
6. Ergonomic design, greatly reducing the labor intensity of operation.
7. The laser rust cleaning system is stable, almost no maintenance.
