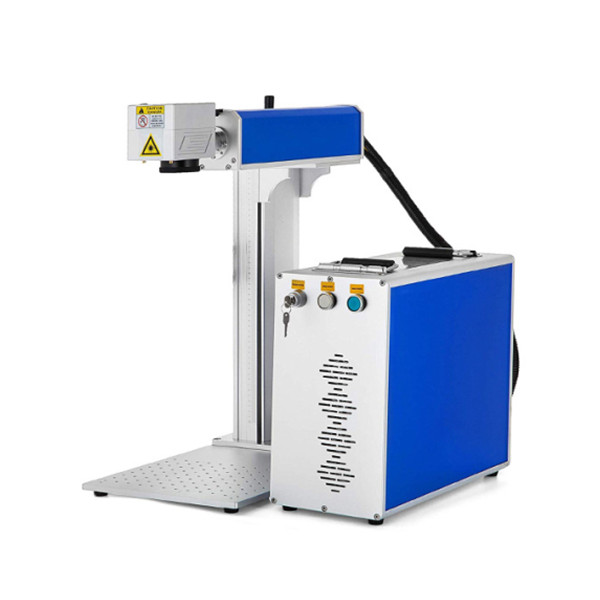

Mini Type Fiber Laser Marking Machine

This is a popular optical fiber laser marking machine: small and light chassis, which can accommodate 20-100 watt lasers. With it, metal and most non-metallic materials can be carved.

  • laser power20W/30W/50W/60W/80W/
  • Mark area110/150/175/200/300
  • Markspeed3000mm/s
  • Mark depth0.05-2mm
  • size450*550*800
  • weight45kg
price$1500-5000
WhatsAppWeChatSend inquirtLive Chat

Mini Type Fiber Laser Marking Machine

1.mini laser marking machine Fast marking Speed and High Efficiency.

2.High Electro-optic Conversion Efficiency.

3.Perfect marking effect.

4.Integrated structure,small and compact size,less occupied area,easy transportation.


ModelLQL-F20LQL-F30LQL-F50LQL-F60
Laser Power20W30W50W60W
Laser TypeFiber Lasers
Wavelength1064nm
F = Fiber,  Customized Specification is Available
Processing Area70*70MM,110*110MM,175*175MM, 200*200MM, 300*300MM (Optional)
Frequency Range20-200Khz
Beam Quality<1.6M2
Laser Source Lifetime≤100000h
Marking Speed≤8000MM/S
Marking Depth≤2MM
Repetition Precision±0.01MM
Min. Line Width0.03MM
Min. Character 0.2MM
Cooling ModeAir Cooling
Lifting Height100~500MM (700MM)
Graphic Formats SupportedPLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Power SourceAC 110/220V±10%, 50/60Hz
Gross Power< 500W
Work EnvironmentTemp: 10~40 ℃，Humidity : 5 ~85 %, Clean, Less Dust

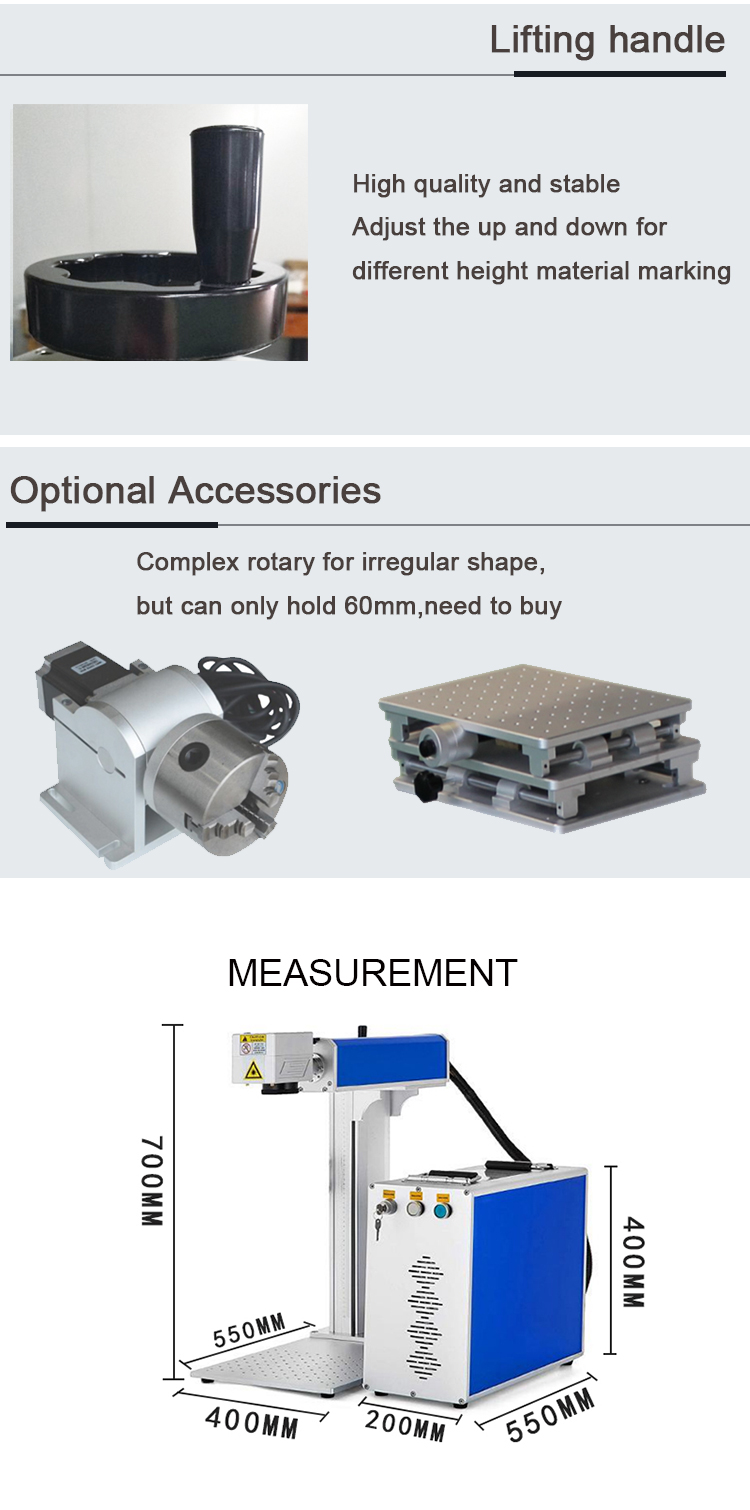

Mini Type Fiber Laser Marking Machine 第1张

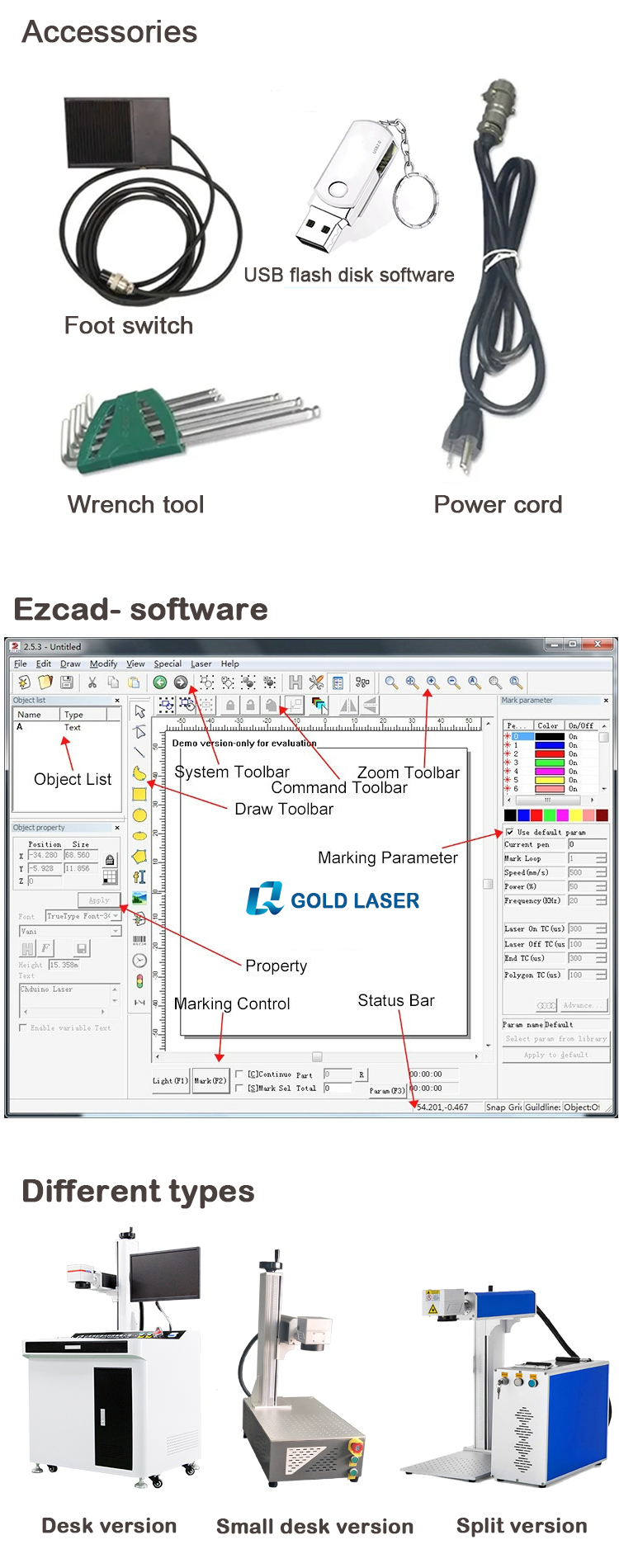

Mini Type Fiber Laser Marking Machine 第2张

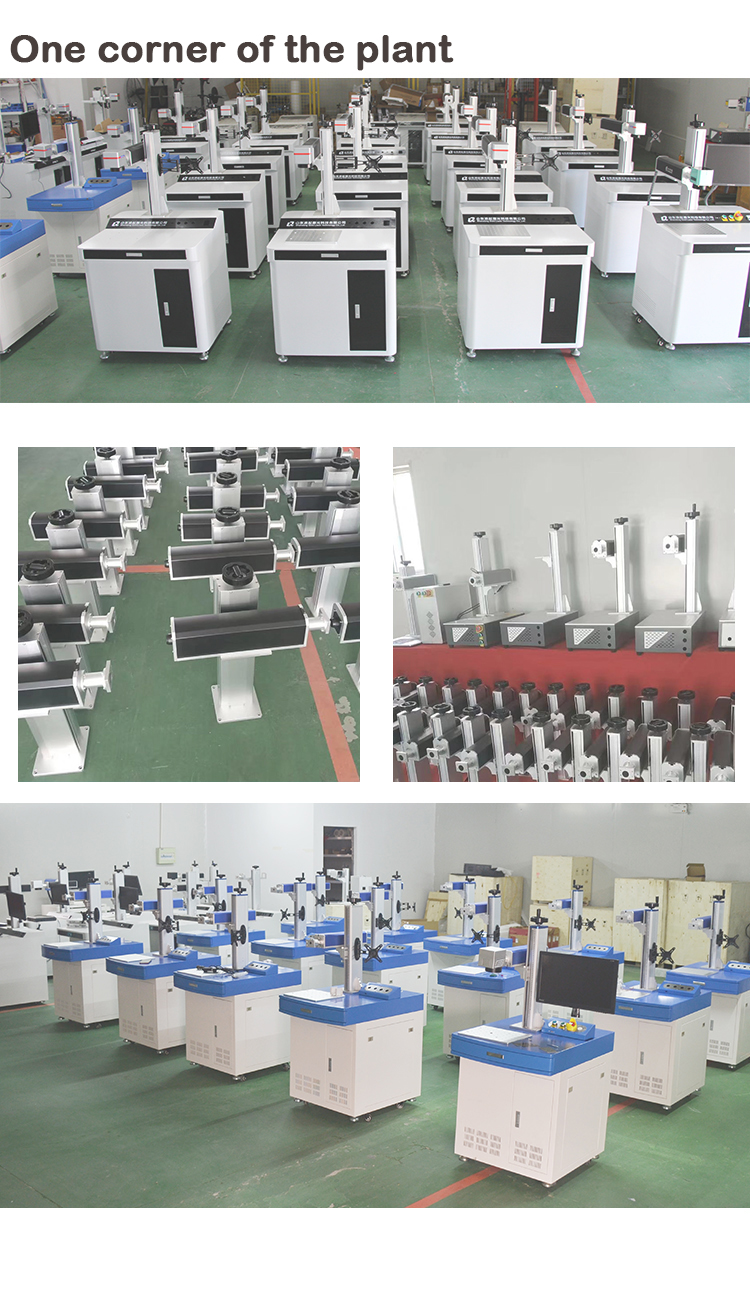

Mini Type Fiber Laser Marking Machine 第3张

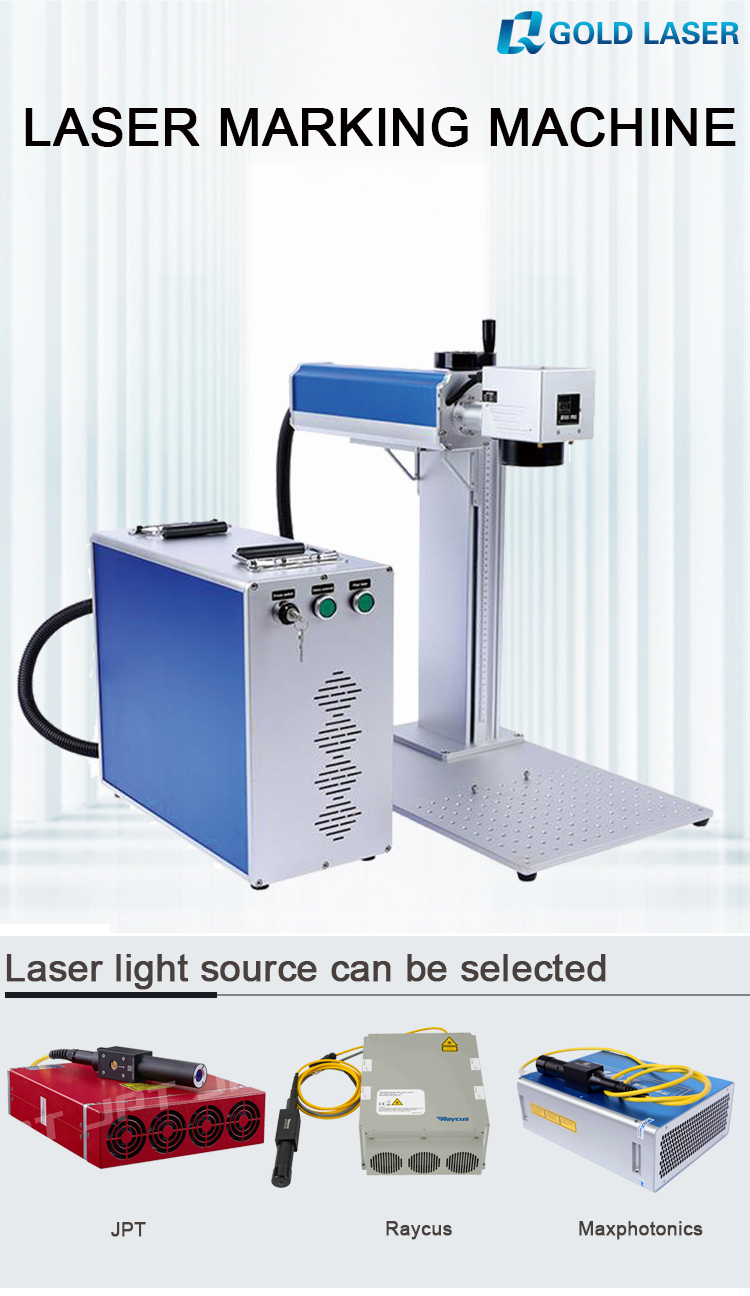

Mini Type Fiber Laser Marking Machine 第4张

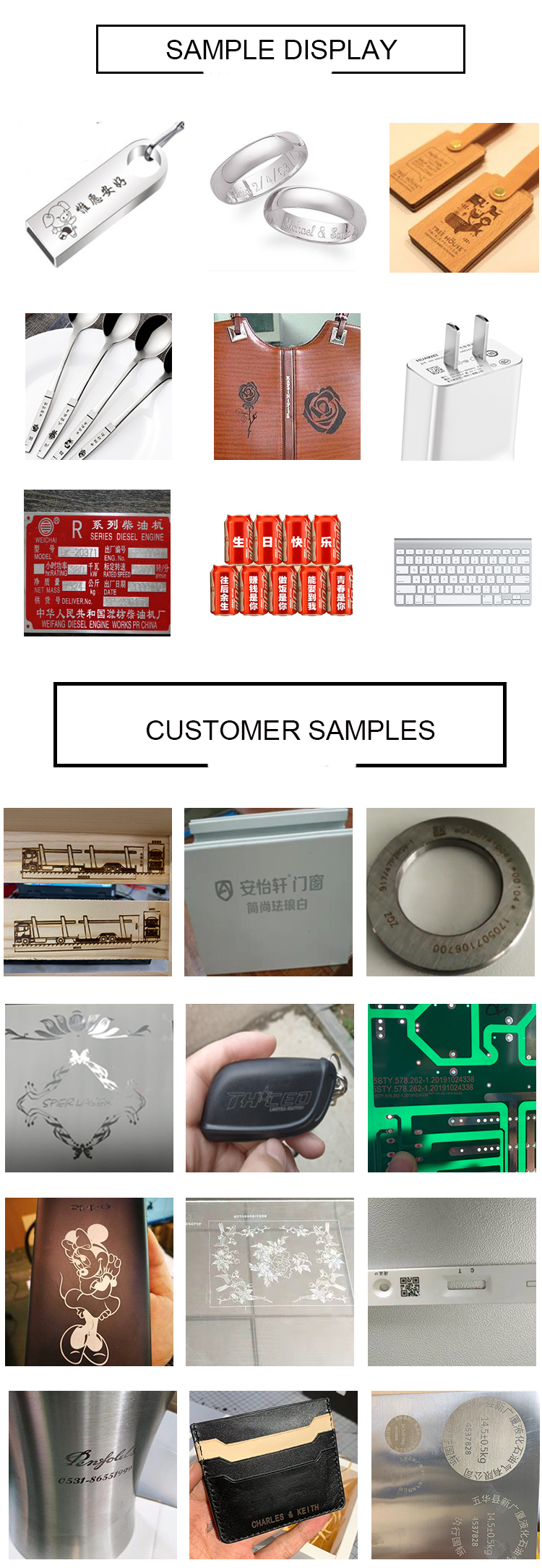

Mini Type Fiber Laser Marking Machine 第5张

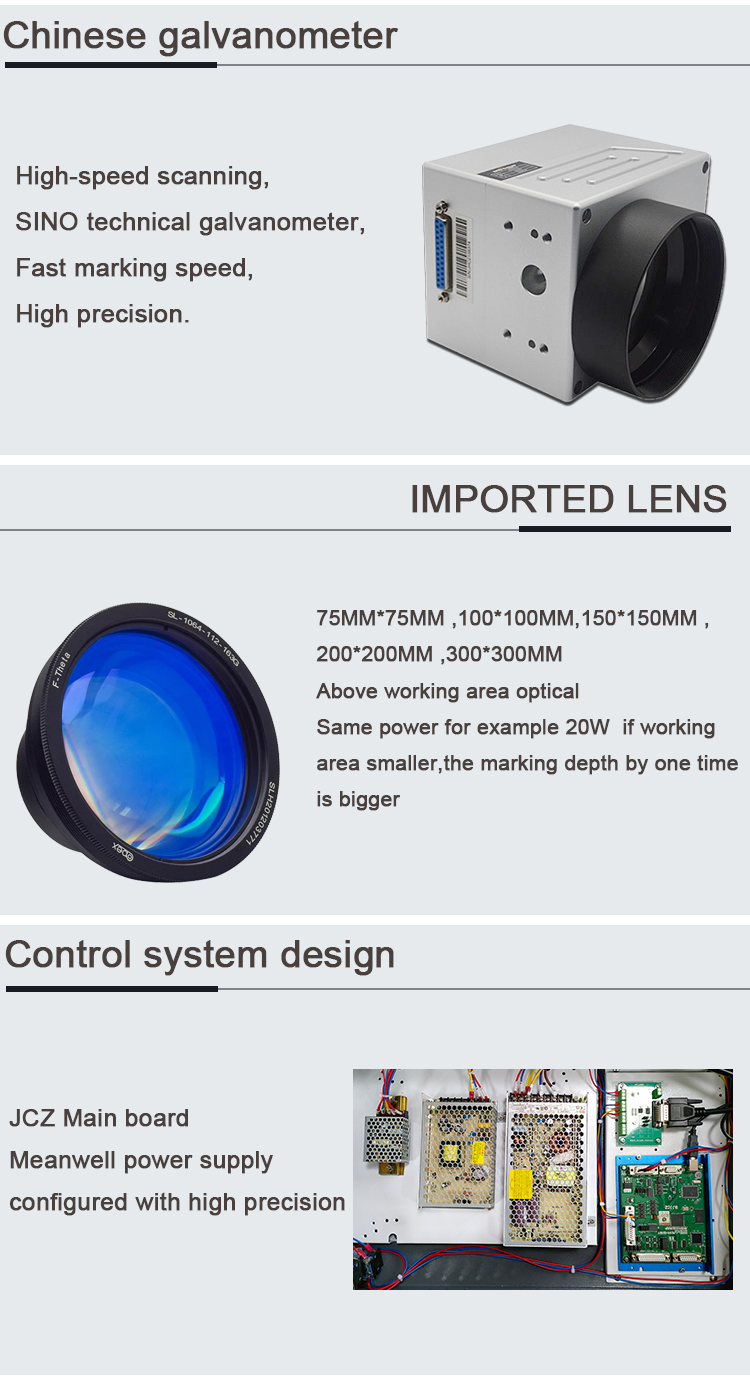

Mini Type Fiber Laser Marking Machine 第6张
