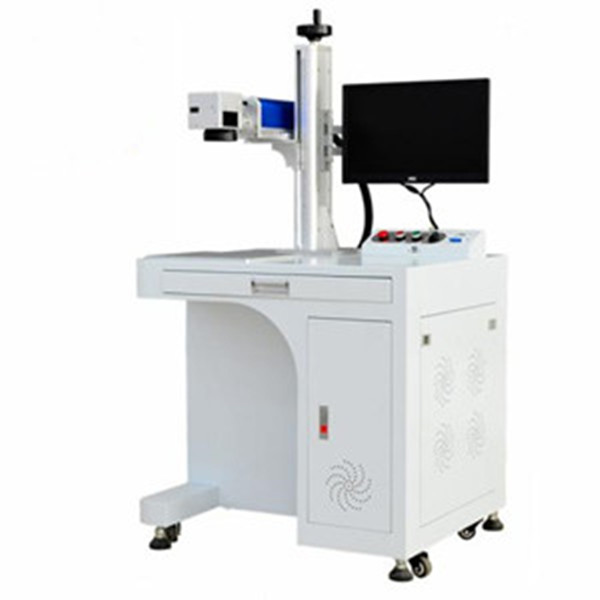

MOPA Laser Marking Machine
Brand | Gold Laser |
Model | LQL-M20/30/60 |
Equipment Name | MOPA Laser Marking Machine |
Laser Power | 20/30/60W |
Laser Type | Fiber Laser |
Laser Wavelength | 1064nm |
Frequency Range | 10kHZ _ 400KHZ 1kHZ _ 1000KHZ |
Making Speed | ≤7000mm/s |
Pulse Width Range | 2-250ns |
Label Range | 110mm*110mm(optional) |
The Minimum Line Width | 0.02mm |
Minimum Character | 0.05mm |
Power Supply | AC220V/50-60HZ 5A |
Cooling | Air Cooling |
Features :

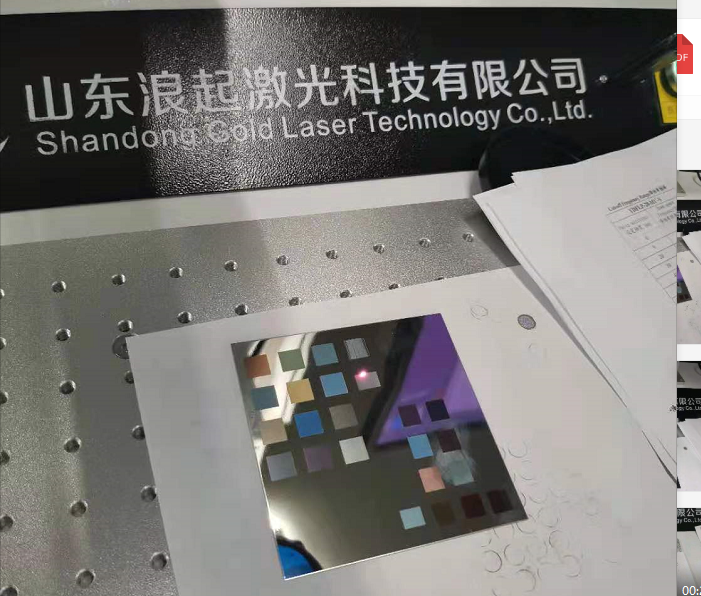

Today's electronic products are getting thinner and thinner. Many mobile phones, tablets, and computers use thin and light aluminum oxide as the outer shell of the product. When a Q-switched laser is used to mark the conductive position on a thin aluminum plate, the material is easily deformed, and a "convex hull" is generated on the back, which directly affects the aesthetic appearance. The parameters of smaller pulse width of MOPA laser can make the material not easy to deform, and the shading is more delicate and bright. This is because the MOPA laser uses a small pulse width parameter to make the laser stay in the material shorter, and it has enough energy to remove the anode layer. Therefore, for the processing of stripping the anode on the surface of the thin alumina plate, MOPA Laser is the better choice.
