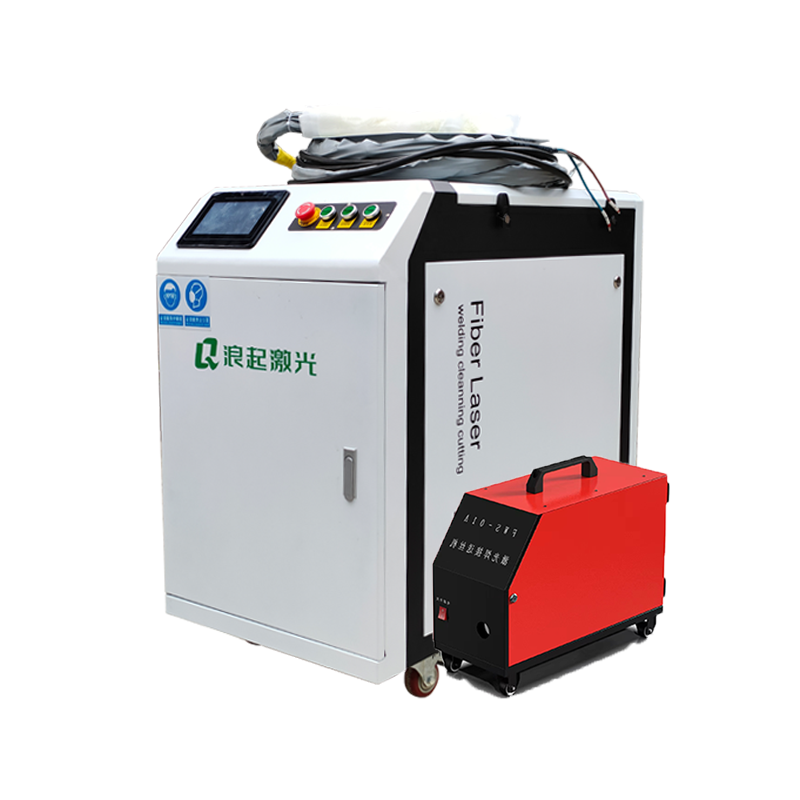

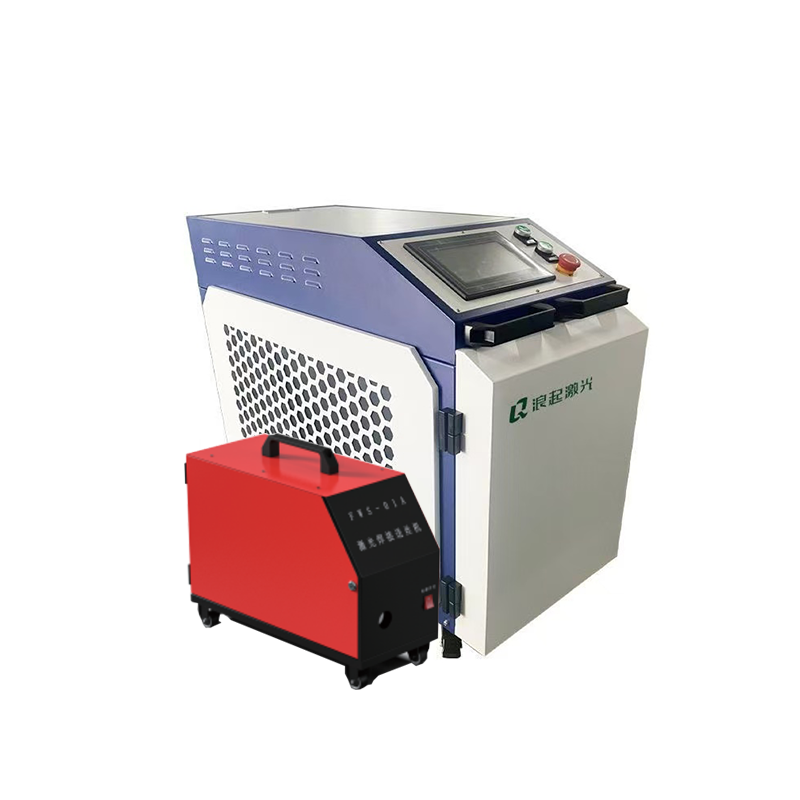

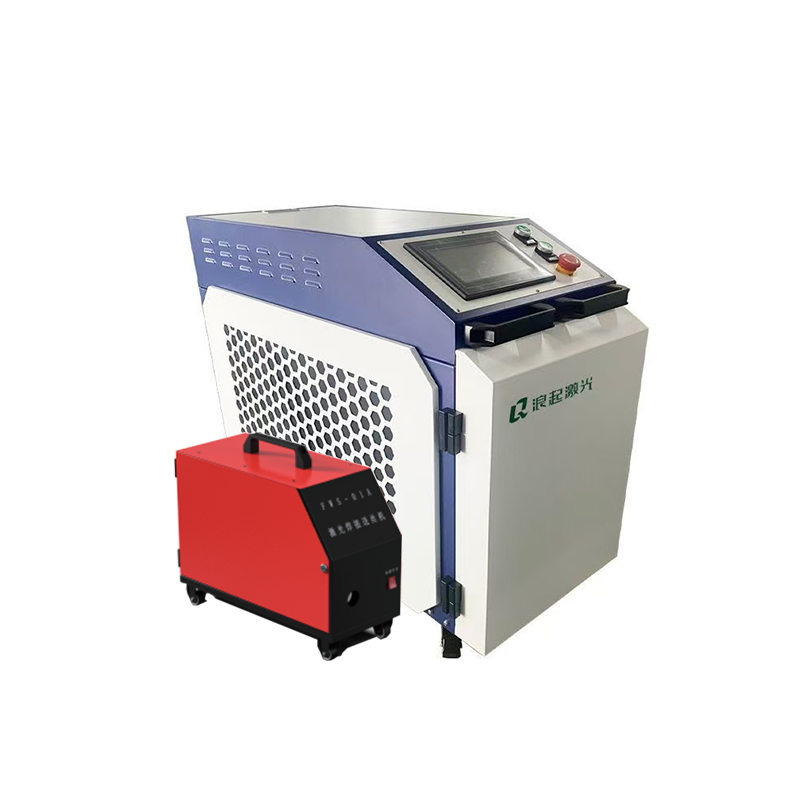

Fiber Laser Welding, Welding, Cutting 3 in 1 Using in Real Situation

​A 3-in-1 fiber laser system (combining welding, cutting, and marking) is a highly versatile and efficient solution for modern manufacturing. These systems leverage fiber laser technology to perform multiple operations with high precision, speed, and minimal material waste. Below are real-world applications and benefits of such systems:

  • laser power1.5KW/2.0KW/3.0KW

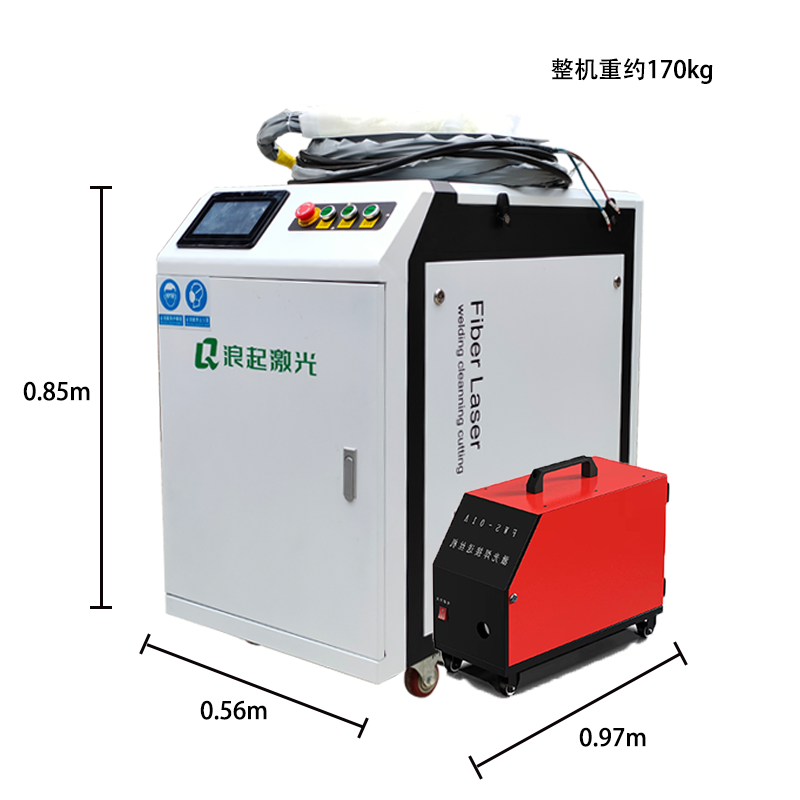

  • size560mm*850mm*970mm
  • weight170.0 kg
price$$3000.0/Set - $5740.0/Set. More Earlier you buy, more discount you have.

A 3-in-1 fiber laser system (combining welding, cutting, and marking) is a highly versatile and efficient solution for modern manufacturing. These systems leverage fiber laser technology to perform multiple operations with high precision, speed, and minimal material waste. Below are real-world applications and benefits of such systems:


1. Key Features of a 3-in-1 Fiber Laser System

  • Fiber Laser Source: High-power (500W–6,000W for welding/cutting) with excellent beam quality.

  • Multi-Functionality:

    • Cutting: Clean, burr-free edges on metals (steel, aluminum, copper, titanium).

    • Welding: Deep penetration, low distortion, suitable for thin to thick sheets.

    • Marking/Engraving: Permanent serial numbers, logos, or barcodes.

  • CNC Automation: Controlled via software (e.g., CAD/CAM integration) for repeatability.

  • Modular Design: Quick switching between functions with minimal setup.


2. Real-World Applications

A. Automotive Industry

  • Cutting: Precision cutting of chassis, exhaust pipes, and body panels.

  • Welding: Battery tabs for EVs, gear components, and exhaust systems.

  • Marking: VIN numbers, part identification.

B. Aerospace & Defense

  • Cutting/Welding: Titanium/aluminum aircraft components with minimal heat distortion.

  • Marking: Traceability for critical parts.

C. Electronics & Consumer Goods

  • Micro-Welding: Battery contacts, sensors, and delicate components.

  • Fine Cutting: Thin sheets for smartphone frames or heat sinks.

  • Engraving: QR codes on stainless steel or aluminum casings.

D. Medical Device Manufacturing

  • Precision Cutting/Welding: Surgical tools, implants (stainless steel, nitinol).

  • Marking: UDI (Unique Device Identification) compliance.

E. Industrial Machinery & Tooling

  • Repair Welding: Dies, molds, and hydraulic components.

  • Cutting: Custom brackets, gears, and shafts.


3. Advantages Over Traditional Methods

  • Cost Efficiency: One machine replaces multiple setups (plasma cutter, TIG/MIG welder, engraver).

  • Speed: Fiber lasers operate at high speeds (e.g., 20 m/min for thin sheets).

  • Precision: Kerf widths as low as 0.1mm with minimal HAZ (Heat-Affected Zone).

  • Material Flexibility: Works with steel, aluminum, brass, copper, and alloys.

  • Low Maintenance: Fiber lasers have no consumables (unlike CO₂ lasers).


4. Example Workflow in a Factory

  1. Cutting: A stainless steel sheet is cut into parts for a kitchen appliance.

  2. Welding: Components are welded with autogenous (filler-free) seams.

  3. Marking: Serial numbers are engraved for quality tracking.
    All steps are done on the same machine without repositioning.


5. Challenges & Considerations

  • Initial Cost: High investment (justified for high-volume production).

  • Operator Skill: Requires training for programming (e.g., parameter optimization).

  • Material Thickness Limits: Fiber lasers excel at thin-to-medium sheets (up to 20mm for cutting, 10mm for welding, depending on power).
