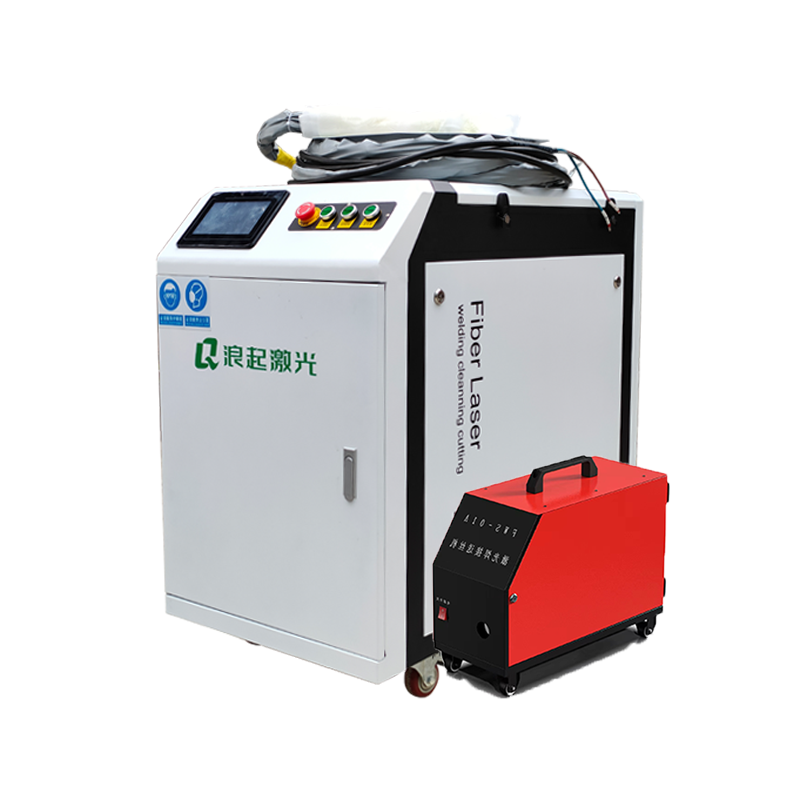

3 in 1 Fiber Laser Welding, Welding, Cutting Working on Steel Metal Material

​A 3-in-1 fiber laser machine combines welding, cutting, and marking capabilities into a single system, making it highly efficient for processing steel metal materials. Here are how it works and its key advantages:

  • laser power1.5KW/2.0KW/3.0KW

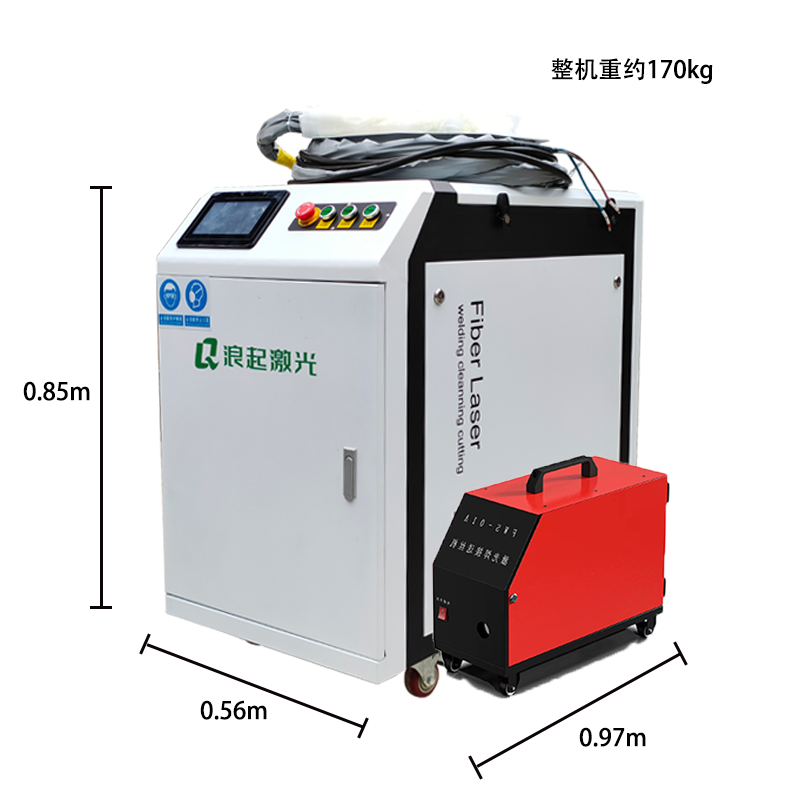

  • size560mm*850mm*970mm
  • weight170.0 kg
price$$3000.0/Set - $5740.0/Set. More Earlier you buy, more discount you have.

A 3-in-1 fiber laser machine combines welding, cutting, and marking capabilities into a single system, making it highly efficient for processing steel metal materials. Here are how it works and its key advantages:

1. Key Functions of a 3-in-1 Fiber Laser Machine

  • Laser Cutting:

    • Can cut through various steel materials (mild steel, stainless steel, carbon steel) with high precision.

    • Thickness capacity: Typically up to 20mm (depending on laser power, e.g., 1000W–6000W).

    • Smooth, burr-free edges with minimal heat-affected zone (HAZ).

  • Laser Welding:

    • Ideal for thin to medium-thickness steel sheets (0.1mm–10mm).

    • High-speed, deep-penetration welding with minimal distortion.

    • Suitable for stainless steel, carbon steel, and alloy steel.

  • Laser Marking/Engraving:

    • Permanently marks steel with logos, serial numbers, or barcodes.

    • Works via annealing, engraving, or ablation without damaging the material.

2. Advantages of a 3-in-1 Fiber Laser Machine

✅ Cost-Effective – One machine replaces three separate systems.
✅ High Precision – Achieves ±0.1mm accuracy in cutting/welding.
✅ Fast Processing – Fiber lasers operate at high speeds (e.g., 10–50 m/min cutting).
✅ Low Maintenance – No consumables (unlike CO₂ lasers).
✅ Energy Efficient – Higher electro-optical conversion rate (~30%).

3. Applications in Steel Metal Processing

  • Automotive – Body panels, exhaust systems, chassis welding.

  • Sheet Metal Fabrication – HVAC, enclosures, brackets.

  • Industrial Machinery – Precision cutting & welding of steel parts.

  • Jewelry & Tools – Engraving and fine welding.

4. Recommended Laser Parameters for Steel

ProcessPower (W)Thickness (mm)SpeedGas Assist
Cutting500–60000.5–201–50 m/minO₂/N₂
Welding200–30000.1–101–10 m/minArgon
Marking20–100N/A100–1000 mm/sNone

5. Why Choose Fiber Laser Over CO₂ or Plasma?

⚡ Better for thin to medium steel (faster than CO₂).
⚡ Nozzle-free welding reduces contamination.
⚡ More compact & durable (fiber laser source lasts 100,000+ hours).
